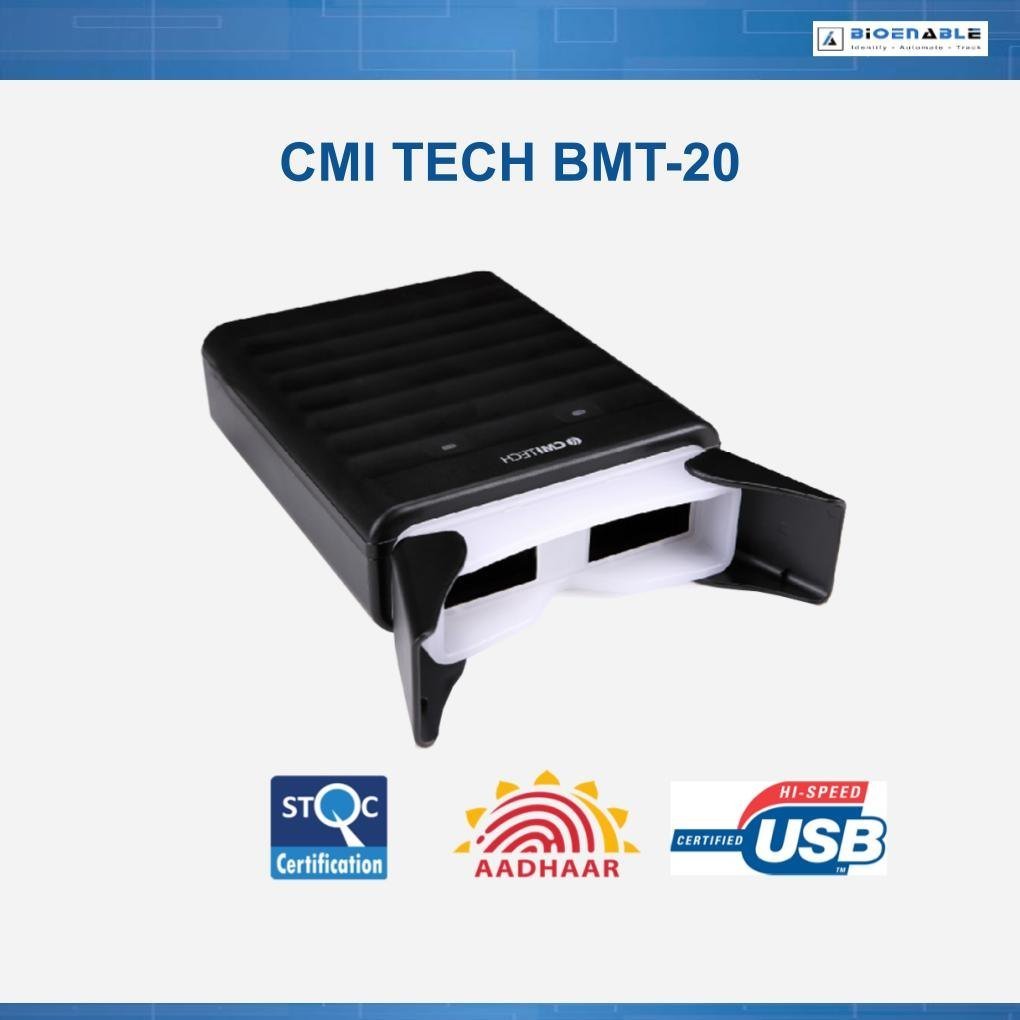

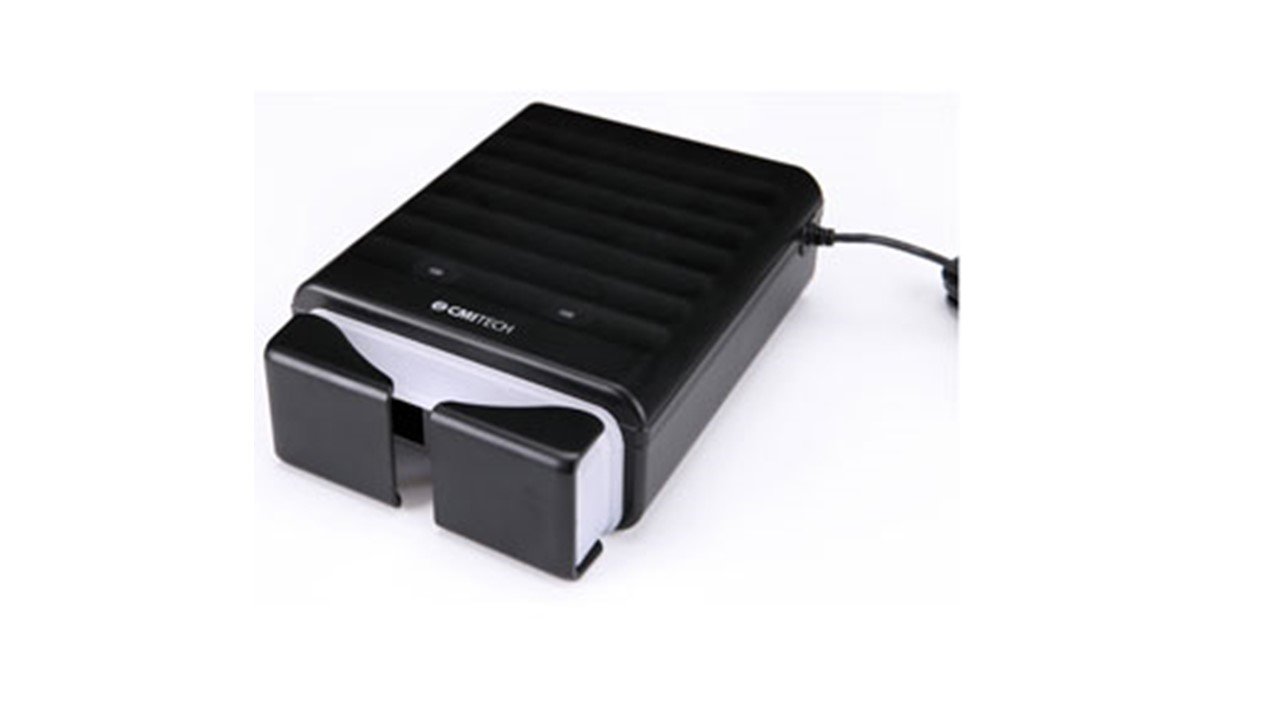

Cmitech Bt20 Dual Iris Scanner

(0 Reviews) Write a review

The CMITECH BMT-20 Dual Iris is a modern day biometric system which is aimed at improving security by means of complex parental recognition. Due to this robust and weather resistant design it is best suited for installation in moderately exposed areas. This make them to perform well in different circumstances which is very essential. In compliance with ISO/IEC 19794-6 standards, this device has fast working speed, high optical standards, and exceptional identification efficiency. With USB 2.0, this device can capture high quality iris image via the dual LED optical system. Due to the features like mirroring access control and light up indicators, the CMITECH BMT-20 makes the capture of both irises much easier and at the same time improving on accuracy which has been recorded to be of great quality.



Original price was: ₹20,900.00.Current price is: ₹18,900.00.

(Save 2,000.00)
In stock
Buy now

Description

The CMITECH BMT-20 Dual Iris Scanner is a modern day biometric system which is aimed at improving security by means of complex parental recognition. Due to this robust and weather resistant design it is best suited for installation in moderately exposed areas. This makes them perform well in different circumstances which is very essential. In compliance with ISO/IEC 19794-6 standards, this device has fast working speed, high optical standards, and exceptional identification efficiency. With USB 2.0, this device can capture high quality iris images via the dual LED optical system. Due to the features like mirroring access control and light up indicators, the CMITECH BMT-20 makes the capture of both irises much easier and at the same time improving on accuracy which has been recorded to be of great quality.

Cmitech Bt20 Dual Iris Scanner – It is perfect for large-scale enrollment programs, capturing very fast and simultaneously high-quality images of iris biometrics. With advanced features and an easy-to-use design, the BMT20 is destined to set new iris scanning standards. Because of its binocular design, the BMT20 can catch both irises at the same time, which is unique. This design feature not only reduces time but also provides the same image quality in both images. Besides, it has an excellent range of inter-pupillary distance, which allows the subject to include children of 5 years old.

The CMITECH BMT20 is user friendly, after a short set of instructions, the subject can be accurately and easily positioned. The system can also be reliably positioned by an operator using the positioning feedback LEDs built into the top of the imager’s housing. It is designed for the tough programs of the India UID and proven in the field. It provides the fastest capture speed, the highest levels of usability, ultra-low failure-to-capture rates, and images of outstanding quality. The captured iris image quality is in compliance with the most stringent ISO/IEC 19794-6 requirements, thus ensuring optimal matching accuracy—a precondition for large-scale deployments where duplicates are key outcomes.

Key Points

  • Dual iris capture in under 1 second
  • STQC certified for Aadhaar and government applications
  • Designed for high-volume identity verification
  • USB-powered, no external power required
  • Compatible with Windows OS platforms

Specifications

  • MTF / Spatial Resolution Exceeds 4.0 lp/mm @ > 60% contrast
  • Pixel Resolution 18.4 to 20 pixels/mm
  • Iris Image Pixel Resolution 640 x 480 pixels
  • Image Output Meets ISO 19794-6
  • Capture Distance (to forehead) 0 to 10 mm (0.0 to 0.4 inches)
  • Optical Path Distance 350 to 380 mm
  • Time of Capture Typically around 1 second, from head placement
  • Operating Temperature Range 0°C to 50°C
